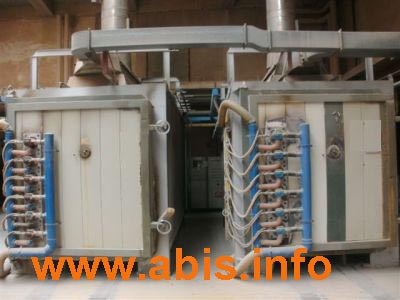

Shuttle kilns, 2 x 4,5 m³, gas heated, used(Article number: 2304)
|
Memo Inquiry |
||||||
Manufacturer: | EU | ||||||
---|---|---|---|---|---|---|---|
Type: | TFS 5 | ||||||
Year of construction: | 1993 | ||||||

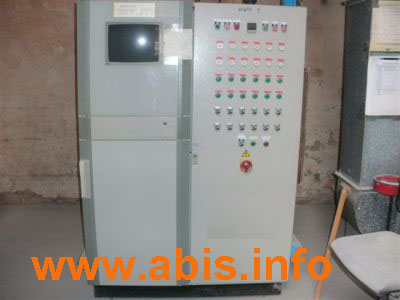

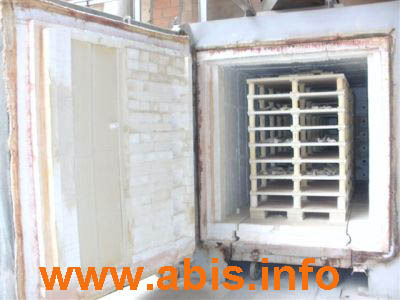

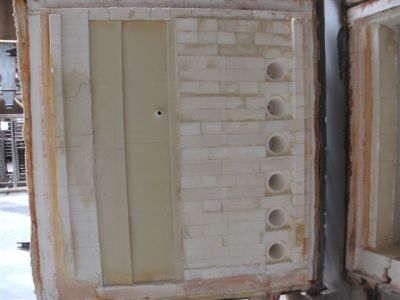

Description: | 2 pcs. shuttle kilns, gasheated, used Rebuilt: 2015 Max. Temperature: 1300 °C Useful volume: á 4,5 m³ Inner dimensions: 3200 x 1050 x 1330 mm (LxWxH) Outside dimensions: 4400 x 2380 x 2800 mm (LxWxH) Connection power: Number of burners: 12 pcs.á 3500-70000 kcal/h Natural gas: approx. 98 m³ Total power gas conncetion Burner capacity: 12 pieces burner á 3500-70000 kcal/h (4-80 kW) Firing and control: with electrode and fiiring automat Isolation: Lining: 1 kiln with Fiber lining Lining: 1 kiln with brick lining Constructions: Kiln case consists of section steel with ventilate steel panel Number of kiln cars: 2 pcs. each kiln Kiln cars are running on guide roll and fixed roller for heavy loads (without rails) Measuring and control systhem Control: Omcron Sysmac C20H Program controller: 34 programms á 26 steps Other benefits: CE-certificate Producer guarantee: 2 years |
||||||
Quantity: | 1 Pcs. | ||||||
Data in accordance with manufacturer | |||||||
