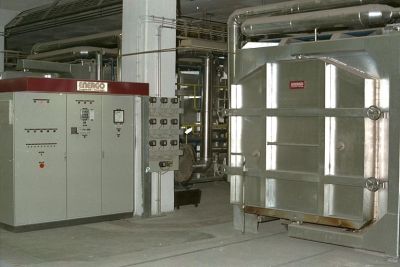

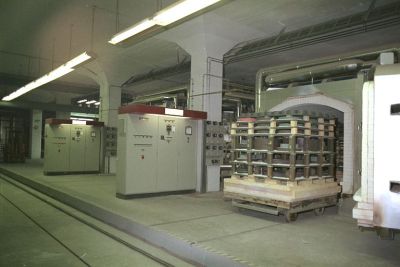

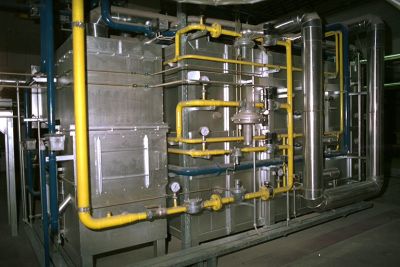

Shuttle kiln, 4,56 m³, 1350 °C, with TNV*, gas heated, used(Article number: 3472)

Shuttle kiln, 4,56 m³, 1350 °C, with TNV*, gas heated, used Shuttle kiln, 4,56 m³, 1350 °C, with TNV*, gas heated, used Shuttle kiln, 4,56 m³, 1350 °C, with TNV*, gas heated, used

Manufacturer: Energo
Type: HWSF 4560 9 HHG
Year of construction: 1991
Description: Useful combustion space: 4,56 m³
Usable length: 2x1.35 m
Usable width: 1.41 m
Usable height: 1.2 m
Firing temperature: 1350 °C
Temperature, max: 1400 °C
Heating: natural gas Hu = 8600 kcal / m3
9 pieces of hot air high speed burners
Power 52 kW each
1 piece of post-combustion medium-speed burner, output 198 kW
Firing cycle: 48 h from cold to cold
longer firing cycles possible
Connected load gas: 468 kW (24 m³/h NG)
Connection value electricity: 13.0 kW
Net weight: 3200 kg
Gross weight of 5700 kg
External dimensions (without pipes, with burner and recuperator lxwxh) approx. 5.30x2.80x3.00 m
Control: modernized furnace control
Thermal afterburning (TNV*)
Condition: used
Quantity: 1 Pc.
Data in accordance with manufacturer
Shuttle kiln, 4,56 m³, 1350 °C, with TNV*, gas heated, used Shuttle kiln, 4,56 m³, 1350 °C, with TNV*, gas heated, used Shuttle kiln, 4,56 m³, 1350 °C, with TNV*, gas heated, used
